Description

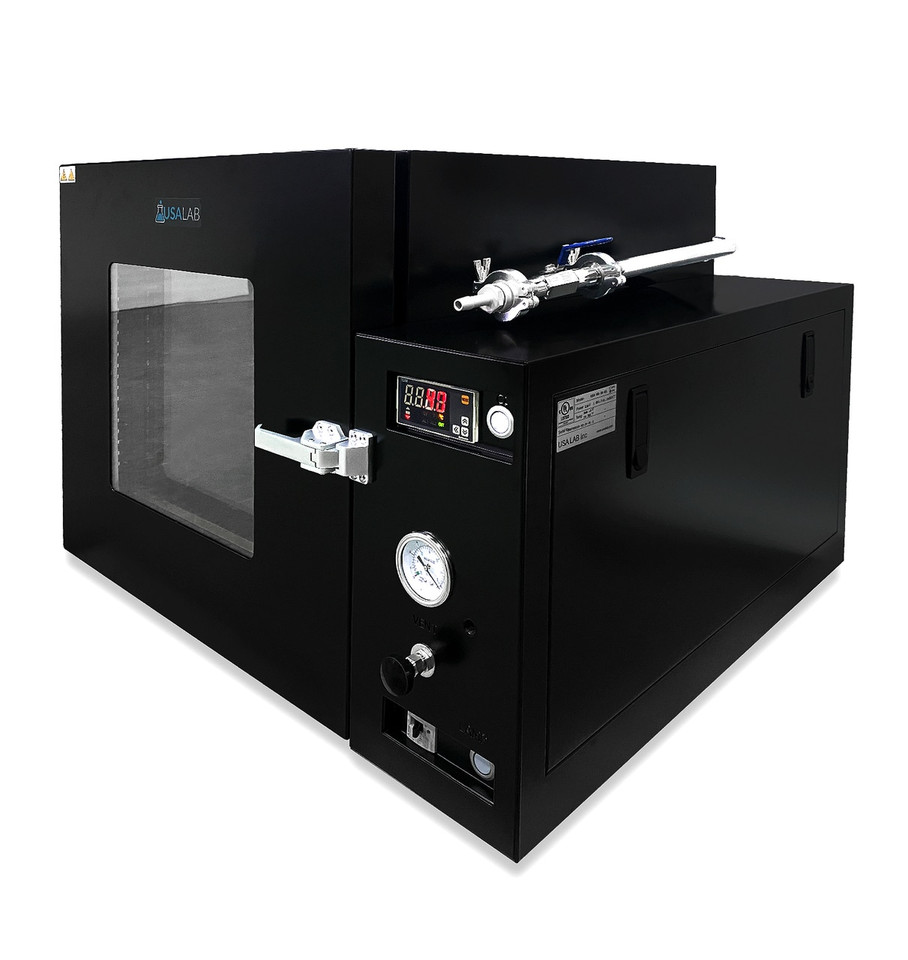

Our USA Lab vacuum ovens are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Our ovens come with a UL and CE certification which is required by many states and provides a higher standard for product production, safety, and lifespan. Each oven comes standard with a Microprocessor PID Membrane Touch Digital Controller for ease of use and superior quality. We also provide an all stainless-steel tubing interior, oil filled vacuum gauge, stainless steel vacuum vent & valve, and a 2-year warranty. All ovens come with 10 high quality aluminum shelves for extremely accurate temperature uniformity. Users can stack our ovens with ease and manifold vacuum lines together for ease of use. Our ovens are equipped with 5 sided heating for maximum temperature uniformity.

Our ovens will provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include and electricity leakage circuit breaker and an over temperature controller.

Our ovens come equipped with the highest quality parts to serve you better and to make your equipment last longer.

Upgrade today and see the USA Lab quality difference!

Manual

SPECIFICATIONS
Model	USA-VO-34-UL
Temp Range	Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉)
Temp Uniformity	± 1°F at 105°F
Temp Controller	Microprocessor PID Membrane Touch Digital controller
Vacuum Resistance	0 to 760 mmHg (0 to 0.1MPa)
Heater Capacity	1.35 kW
Capacity	96 L \| 3.4 CuFt
Dimension Internal	400x600x400(mm) \| 15.74x23.62x15.74(inch)
Dimension External	879x820x708(mm) \| 34.60x32.28x27.87(inch)
Internal Area	5,858 cubic inches
Area of one Shelf	345 Sq In
Total Area of 10 Shelves	3,450 Sq In
Net weight	116 Kg \| 255 Lbs.
Material Internal	Stainless Steel
Material External	Steel Plate with Powder Heating Coated
Material Packing	Silicon Rubber Packing
View Window	Tempered Glass
Shelves	10 EA
Electrical Requirements	110-120V, 50/60Hz, 1Φ 12.3 A \| 5-15P Plug Installed
Warranty	2 Year
Safety	Over Temp. Controller & Electricity Leakage Circuit Breaker
Certifications	UL & CE

PACKING LIST
Model	USA-VO-34-UL
USA-VO-34-UL Oven	1
Shelves	10
Vacuum KF25 Valve	1
KF25 L-Type Pipe	1
KF25 Clamp	3
KF25 O-ring	3
3/8" Silicone Tubing 6.5ft	1
KF25 to 3/8" Hose Barb	1
Manual	1

Details

Net weight:	116 Kg \| 255 Lbs.
Temp Range:	Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉)
Vacuum Resistance:	0 to 760 mmHg (0 to 0.1MPa)
Heater Capacity:	1.35 kW
Capacity:	96 L \| 3.4 CuFt
Dimension Internal:	400x600x400(mm) \| 15.74x23.62x15.74(inch)
Dimension External:	879x820x708(mm) \| 34.60x32.28x27.87(inch)
Internal Material:	Stainless Steel
External Material:	Steel Plate With Powder Heating Coated
Internal Area:	5,858 cubic inches
Area of one Shelf:	345 Sq In
Shelves:	10 EA
Area of 10 Shelves:	3,450 Sq In
Height of 2 Units:	52 In
Heating Type:	5 Sided Heating
Electrical:	110-120V, 50/60Hz, 1Φ 12.3 A \| 5-15P Plug Installed
Certifications:	UL & CE
Warranty:	2 Years
