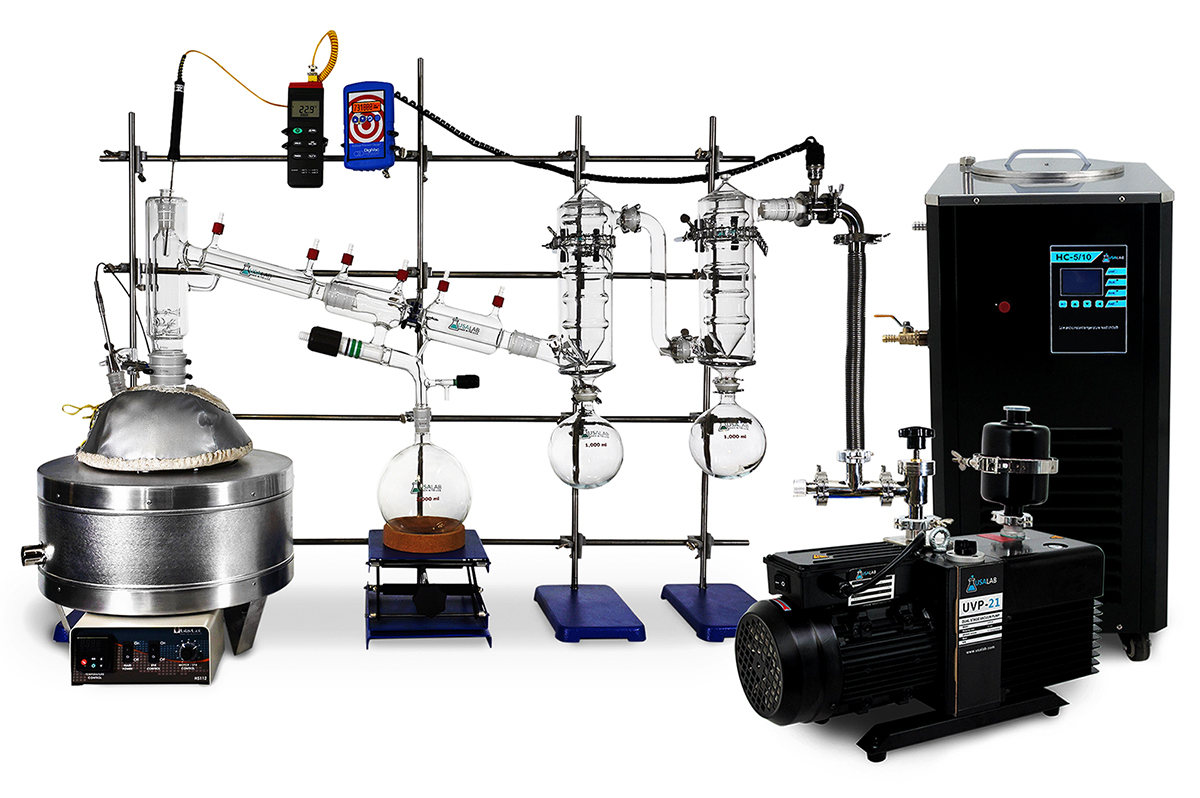

USA Lab N3 5L Short Path Distillation Turnkey Kit - USA Made Glass

Our Premium 5L Full Bore Short Path Distillation Kit is made with high quality USA Made Glass and a specially designed 55/50 head to allow for excellent distillation, high production, and consistent results.

This distillation kit comes with a large 55/50 distillation head, a 34/45 dual vacuum take-off adapter to allow for easy switching of receiving flasks, two 34/45 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.

Choose the best quality at the best value with this lattice supported high quality USA made glass distillation kit.

 GLAS-COL TEM-114 MANTLE INFORMATION

Glas-Col invented the Electric Heating Mantle in 1939 and has continued to be the industry leader for Laboratory and Industrial heating ever since. Their products are known for exceptional performance, reliability, and durability. Upgrade today to see the Glas-Col difference.

100D-TEM114 MANTLE:

Capacity: 5 L

Watts: 600

Volts: 110-120

Material: aluminum housed

Max temperature C: 400

Height (in): 7.75

Outside Diameter (od)(in): 16.5

Includes: Separable 4-ft., 2-wire cord and locking connector.

104A HS112 CONTROLLER:

Watts: 1800

Volts: 110-120

Output: PID

100A MO1143 TOP:

Capacity: 5 L

Watts: 300

Volts: 110-120

108A TJ1/4-12 THERMOCOUPLE:

D x L: 1/4" x 12"

Lead Length: 72"

Type: J

PACKING LIST (ALL CORDS ARE INCLUDED):

1X: 5L 100D-TEM114-KIT MANTLE:

1X: 104A HS112 CONTROLLER

1X: 5L 100A MO1143 TOP

1X: 108A TJ1/4-12 THERMOCOUPLE

UVP-21 PUMP INFORMATION

Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can complement multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.

• Corrosion-resistant vanes for premium reliability.

• Low noise level and noise-dampening rubber feet.

• Internal check-valve, preventing accidental back-flow.

• Easy to change oil mist filter.

• Large oil reservoir.

5L HEATER CHILLER INFORMATION







HC-5/10 PACKING LIST
USA Lab DFY-5/10 Heater Chiller	1 pc
19" Metal Rod Stand	1 pc
Boss Clamp	1 pc
Bent 4 Prong Clamp	1 pc
1/2" Insulated Tubing	11ft
1/2" Barbed Valve	1 pc
PTFE Sealing Tape	1 pc



VACUUM GAUGE INFORMATION

This rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.

FEATURES:

o    • Visual graphing feature right on the display.

o    • Vacuum analytics to quickly identify vacuum pressure trends.

o    • Graphical display for quick determination of vacuum level.

o    • Hands-Free with a “hang up your overalls” strong magnet.

o    • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury.

SPECIFICATIONS:

• Weight: 2lbs

• Shipping Dimensions: 11 x 10 x 4 in

• Vacuum Reference: Absolute

• Units: Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa

• Total Range: 1E-4 - 1000 Torr

• Range Accuracy: .001 - 2.0 Torr

• Sensor Type: Thermocouple

• Portable: Yes

• Vacuum Interface: 1/8" MNPT

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand-new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
