Description
Our 5L Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation, high production, and consistent results.
This distillation kit comes with a large 45/50 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.
Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
|
SPECIFICATIONS |
||
|
Model |
C-SD5L-H1TK |
|
|
Flask Size |
5L / 5000ML |
|
|
Flask Joint Sizes |
45/50 Main | 24/40 Side |
|
|
Distillation Head Joint Sizes |
45/50 Bottom | 24/40 Top | 34/45 Side |
|
|
Isolation Adapter Joint Sizes |
34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
|
|
Left Cold Trap Joint Sizes |
24/40 |
|
|
Right Cold Trap Joint Sizes |
24/40 |
|
|
Optimal Capacity |
800-3000mL |
|
|
Batch Time |
4-8 Hours |
|
|
Main Body Flow Rate |
300-700 grams/hour |
|
|
Footprint |
80x24x40(inch) Including Pump / Chiller |
|
|
Heating Mantle Power |
220-240V 800W 3.6A 6-15P Plug Installed |
|
|
Heater Chiller Requirements |
110-120V 30A 5-30P Plug Installed |
|
|
Vacuum Pump Requirements |
110-120V 1100W 9.16A 5-15P Plug Installed |
|
|
Warranty |
1 Year (Pump is a 2 year warranty) |
|
|
PACKING LIST |
||
|
Model |
Quantity |
|
|
USA Lab 5L 300°C 1200 RPM Heating Mantle |
1 |
|
|
USA Lab 21CFM UVP-21 |
1 |
|
|
USA Lab 5L Heater Chiller HC-5/10 |
1 |
|
|

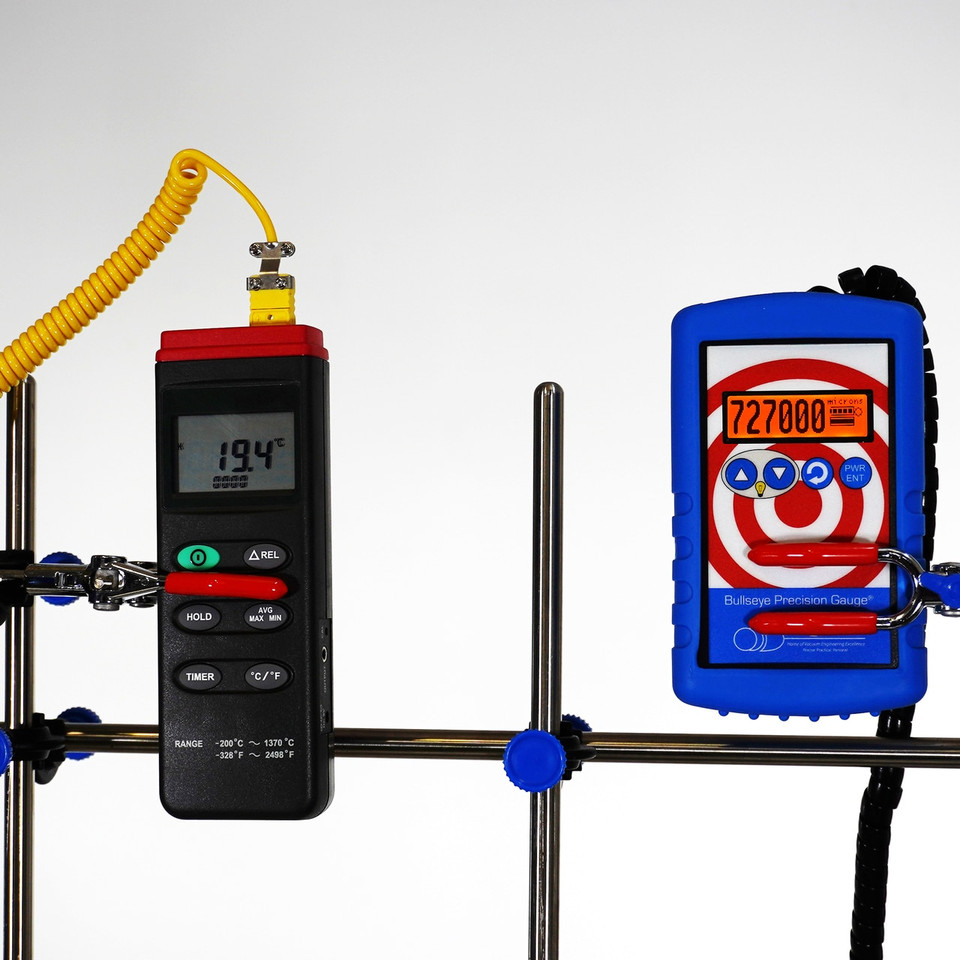

DigiVac Bullseye Vacuum Gauge |
1 |
|
|
Digital K-type Thermometer w/ Probe |
1 |
|
|
5L Thermal Shield USA Lab |
1 |
|
|
5L RBF - 2 neck 24/40 and 45/50 Center |
1 |
|
|
5L 45/50 H1-5 Distillation Head |
1 |
|
|
500ML RBF - 1 Neck 24/40 |
2 |
|
|
1000ML RBF - 1 Neck 24/40 |
1 |
|
|
34/45 Isolation Adapter |
1 |
|
|
24/40 Male Cold Trap |
1 |
|
|
24/40 female Cold Trap |
1 |
|
|
Cold Trap Lid |
2 |
|
|
S35/20 500ml RBF |
2 |
|
|
5L Flask Thermowell 24/40 |
1 |
|
|
5L Head Thermowell 24/40 |
1 |
|
|
GL-18 Connection |
4 |
|
|
45/50 Keck Clamp |
1 |
|
|
34/45 Keck Clamp |
1 |
|
|
24/40 Keck Clamp |
4 |
|
|
Red Large Clamp Retort 3 Prong |
4 |
|
|
Chain Clamp for Lab Stand |
2 |
|
|
Stainless Steel S35 Pinch Clamp |
2 |
|
|
4" Diameter Extension Support Ring |
2 |
|
|
Boss Head Clamp |
18 |
|
|
Small Cork Stand |
2 |
|
|
Medium Cork Stand |
1 |
|
|
6"x8" Lab Stand |
4 |
|
|
8"x8" Lab Jack |
1 |
|
|
48" SS Rod |
3 |
|
|
KF25 to 24/40 PTFE Adapter |
1 |
|
|
KF-25 to KF-25 x 1/8" FNPT Adapter |
1 |
|
|
KF25 Bellow Hose 24" |
1 |
|
|
KF25 3-Way Tee |
1 |
|
|
KF25 Pressure Release Valve |
1 |
|
|
KF25 Right Angle Valve |
1 |
|
|
KF25 Wing Nut Clamp |
4 |
|
|
KF25 Vacuum Pump Centering Ring |
4 |
|
|
Silicone Hosing 1/2" |
10ft |
|
|
Mantle Manual |
1 |
|
|
Pump Manual |
1 |
|
|
Heater Chiller Manual |
1 |
|
The USA Lab 2L digital mantle is the most reliable digital magnetic heating mantle on the market. These mantles allows users to have repeatable, consistent results with ease.
|
Voltage |
220V 60Hz Single phase 800 watts |
|
Temperature range |
RT ~ 572℉ （300℃） |
|
Maximum rotation speed |
1400 rpm |
|
Maximum stirring volume |
|
|
Stir bar |
1pc 1 x 0.3" |
|
Unit size |
Φ13.0 × 9.0’’ |
|
Unit weight |
14 Lbs |
Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can complement multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.
• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.
|
UVP-21 SPECIFICATIONS |
|
•Electrical Requirements: 220V 15A 1100W Single Phase |
|
•Pumping Flow Rate: 21 CFM |
|
•Ultimate Vacuum without Gas Ballast: 0.3 Micron |
|
•Ultimate Vacuum with Gas Ballast: 6 Micron |
|
•Oil Volume: 2 Liter / 2.1 Quart |
|
•Recommended Oil: Inland 19 |
|
•Inlet/Outlet Connection: KF25 |
|
•Motor Speed: 1720 rpm |
|
•Noise Level: <58 dB |
|
•Working Temperature: 5-40°C |
|
•Weight: 94Lbs |
|
•Warranty: 2 Years |
|
UVP-21 PACKING LIST |
|
•USA Lab UVP-21 21cfm Vacuum Pump: 1pc |
|
•Oil Mist Filter: 1pc |
|
•KF25 Clamp: 2pcs |
|
•KF25 Centering Ring: 2pcs |
|
•KF25 to 3/8" barb: 1pc |
|
•User Manual: 1pc |
Need a heater chiller that is ultra quiet yet pumps efficiently? Look no further! Our all new HC-5/10 Heater Chiller is built for high flow rates and low/high temperatures. With a low temperature of -10°C and a high temperature of 99°C, this heater chiller is a work horse that pumps 30L per minute! Our HC-5/10 heater chiller even comes with magnetic stirring capabilities.
These work great for our Rotary Evaporators & Short Path Systems!
|
HC-5/10 SPECIFICATIONS |
|
•Reservoir Capacity: 5L |
|
•Reservoir Dimensions: 8" x 8" |
|
•Cooling Range: -10°C to 38.5°C |
|
•Heating Range: -10°C to 99°C |
|
•Power Requirements: 110V 60Hz 20A Single Phase |
|
•Refrigerating BTUs: 4,500BTU - 1,000BTU |
|
•Heating Element Wattage: 1000W |
|
•Circulating Pump Wattage: 100W |
|
•Temperature Accuracy: +/- 0.5°C |
|
•Pump Flow: 30L/Min |
|
•Pump Pressure: 0.4bar |
|
•Barb Size: 1/2" |
|
•Refrigerant: R404 |
|
•Dimensions: 19" x 14" x 29" |
|
•Weight: 100lbs |
|
HC-5/10 PACKING LIST |
|
|
USA Lab DFY-5/10 Heater Chiller |
1 pc |
|
19" Metal Rod Stand |
1 pc |
|
Boss Clamp |
1 pc |
|
Bent 4 Prong Clamp |
1 pc |
|
1/2" Insulated Tubing |
11ft |
|
1/2" Barbed Valve |
1 pc |
|
PTFE Sealing Tape |
1 pc |
This rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.
FEATURES:
o • Visual graphing feature right on the display.
o • Vacuum analytics to quickly identify vacuum pressure trends.
o • Graphical display for quick determination of vacuum level.
o • Hands-Free with a “hang up your overalls” strong magnet.
o • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury.
SPECIFICATIONS:
• Weight: 2lbs
• Shipping Dimensions: 11 x 10 x 4 in
• Vacuum Reference: Absolute
• Units: Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
• Total Range: 1E-4 - 1000 Torr
• Range Accuracy: .001 - 2.0 Torr
• Sensor Type: Thermocouple
• Portable: Yes
• Vacuum Interface: 1/8" MNPT
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand-new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
