Description

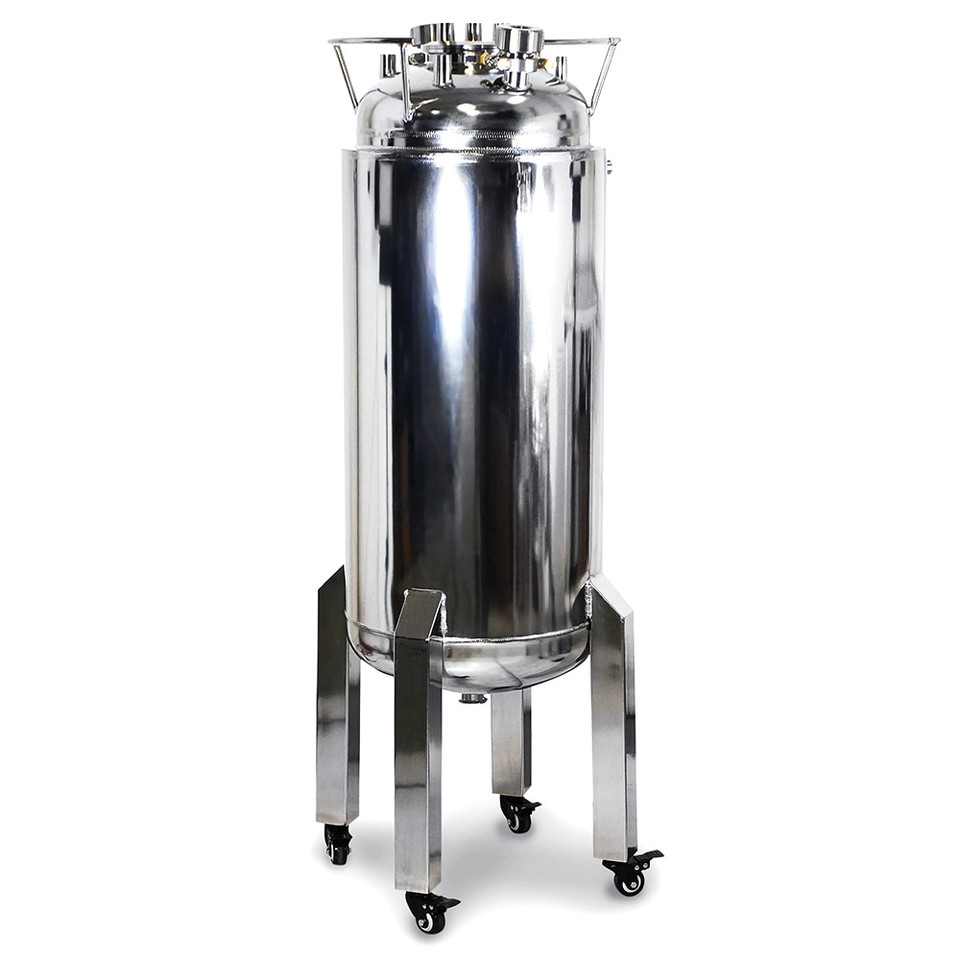

Our ASME solvent tanks come fully optimized with top tier quality features to make them the best solvent tanks on the market. Each tank comes with an ASME Stamp, as well as a jacket and condensing coil to circulate fluids with ease. The lid comes with multiple ports, and 2 borosilicate sight glasses for easy viewing and full customization. Our solvent tanks also come with durable locking legs and casters as well as a 1.5" Triclamp drain for easing emptying and draining.

Upgrade your solvent tank today at an affordable price point and see why these tanks are a favorite in the industry.

SPECIFICATIONS
Model	SOLV-50LB-JACK-ASME	SOLV-100LB-JACK-ASME	SOLV-200LB-JACK-ASME
Size	50LB	100LB	200LB
Water Capacity	22.68L	45.36L	90.72L
Butane Capacity	24.04LB	48.08LB	96.16LB
Jacket Capacity	7L	18L	24L
Coil Capacity	.45L	.78L	1.29L
Weight	91LBS	148LBS	208LBS
External Dimensions	19x19x32"	19x19x49"	22x22x56"
Internal Dimensions	12x12x13.5"	12x12x31"	15x15x39"
Shell PSI Rating	-80°C at 260PSI \| 150°C at 260PSI
Jacket PSI Rating	150°C at 87PSI

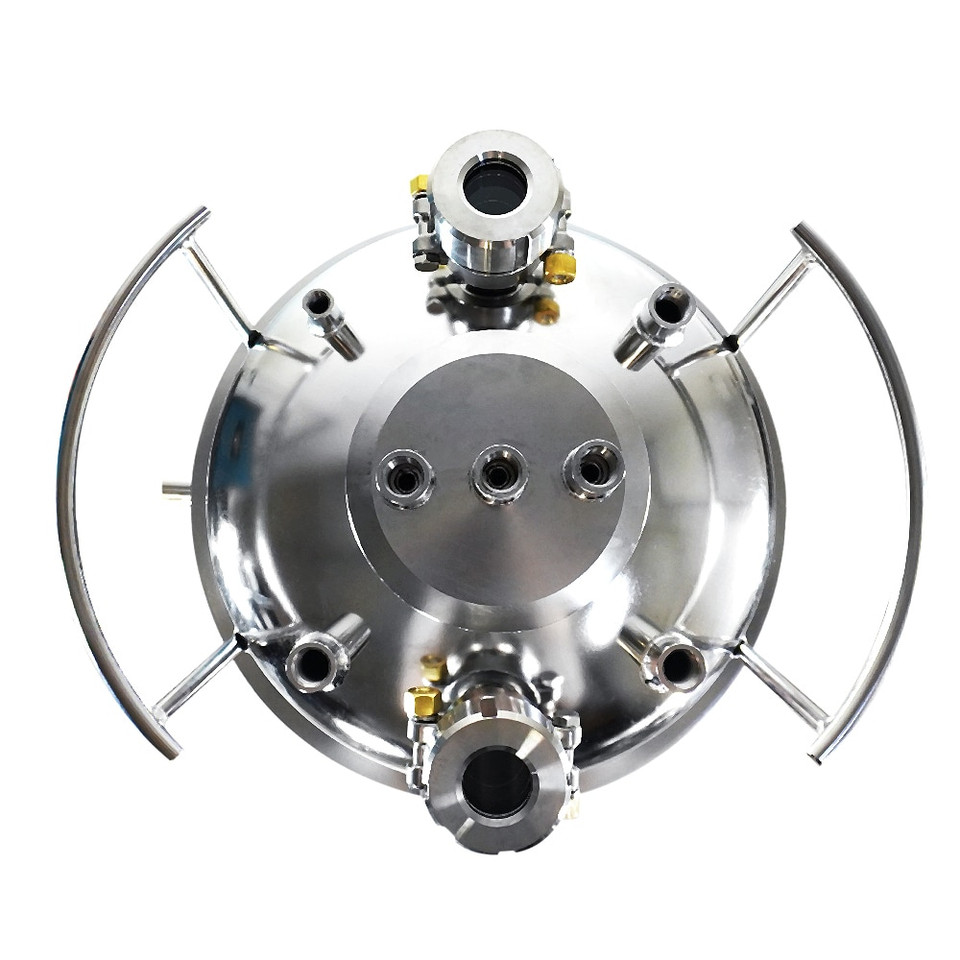

Lid Connections	6" TC with 2x 1/2" FNPT for coil and 1x 1/2" FNPT for dip tube
Top Connections	3x 1/2" FNPT and 1x 1/4" FNPT
Bottom Connection	1.5"TC
Certification	ASME

PACKING LIST
Item	SOLV-50LB-JACK-ASME	SOLV-100LB-JACK-ASME	SOLV-200LB-JACK-ASME
Main Tank	1x 50lb	1x 100lb	1x 200lb
Coil	1	1	1
1.5" HP Triclamp	3	3	3
6" HP Triclamp	1	1	1
1.5" Buna Gasket	3	3	3
6" Buna Gasket	1	1	1
1.5" Solid End Cap	1	1	1
