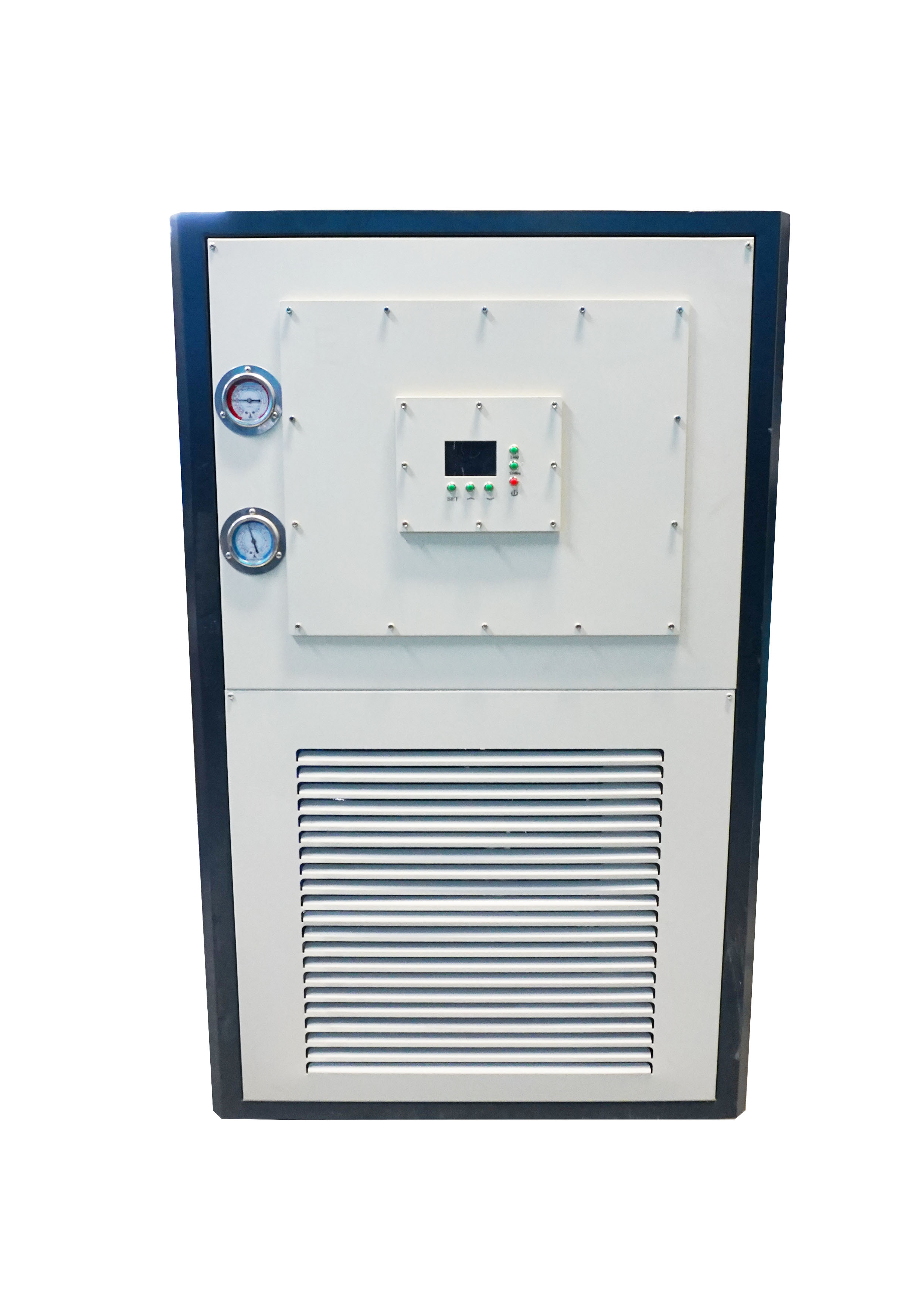

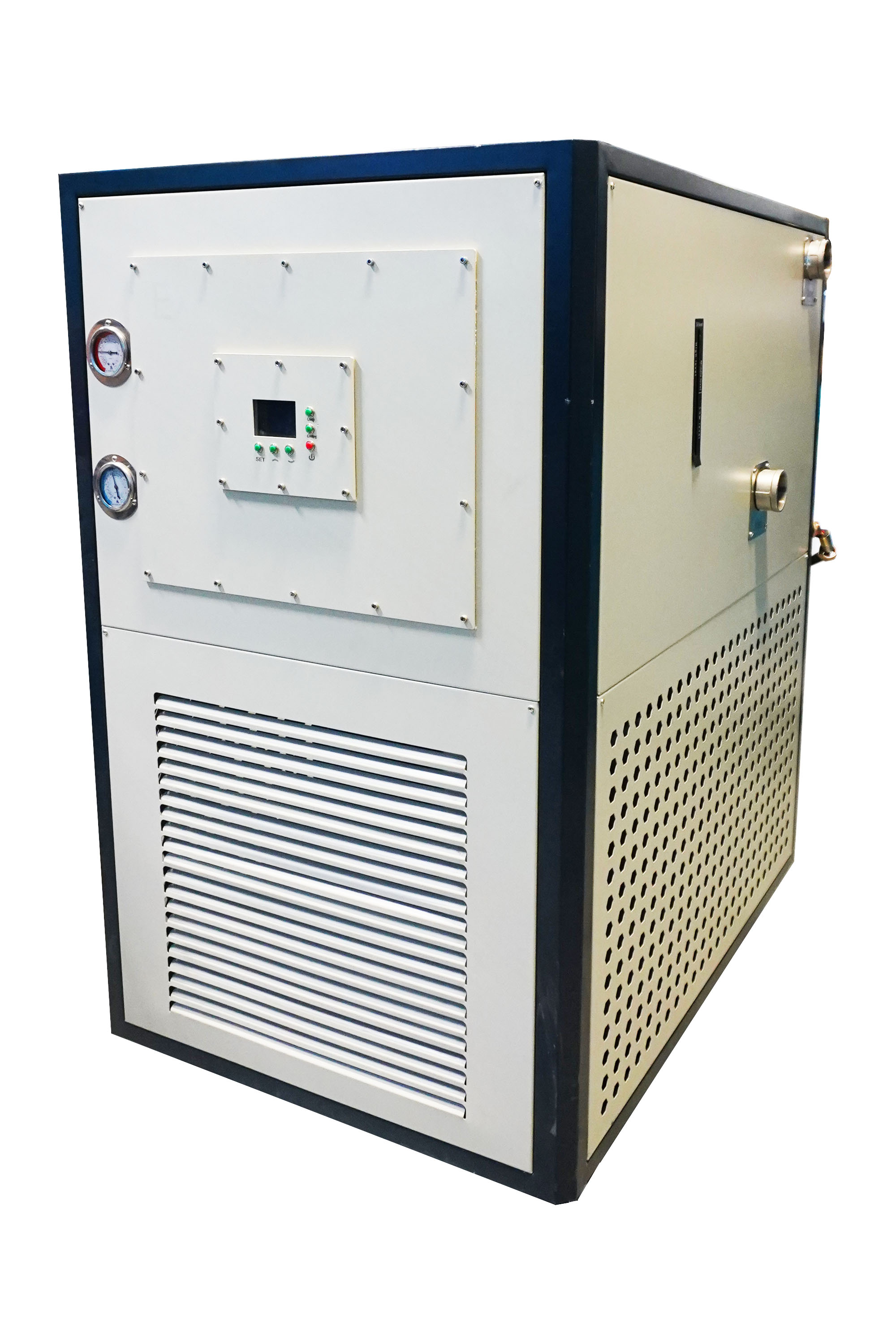

USA Lab - 40°C 100L Recirculating Chiller UC-100/40 40L Min

SPECIFICATIONS

Model

UC-100/40

Model

UC-100/40

Can be equipped with Glass Reactor or Rotary Evaporator

100L

Tank Capacity（L）

100L / 26.4 Gallons

Tank Size(mm)

(500*500)mm  -- (19.8 x 19.8) IN

Coil Inner Diameter

450mm – 17.71 IN

Temp Range（℃）

RT to -40℃

Environmental Temp

5-35℃

Relative Humidity

≤60

Min Temperature

-42℃

Voltage

240V±10% 60HZ three phase

Refrigerating Power（W)

22050-368

Total Power

10HP Danfoss

Meter Range

-150℃-100℃

Accuracy（℃）

±0.5

Sensor

PT100

Circulating Pump Power（w）

550

Lift（m)

19-22

Flow（L/min）

40L/Min

Pressure（Bar）

2.2

Compressor

Imported Fully Closed Compressor

Refrigerant

R404A

Circulating Pump

Fully Closed No Leakage Special Pump

Inlet and outlet Oil Nozzle

6＃ or 1.5inch (Lower: Inlet, Higher: Outlet )

The method of Controlling Temp

Digital Display

Temp Resolution

1℃

Cooling Coil

Copper（Nickle Plating）

Shell Material

Spraying Paint Anti-Corrosive

Overall Dimension (Inches )

43 x 35 x 43
