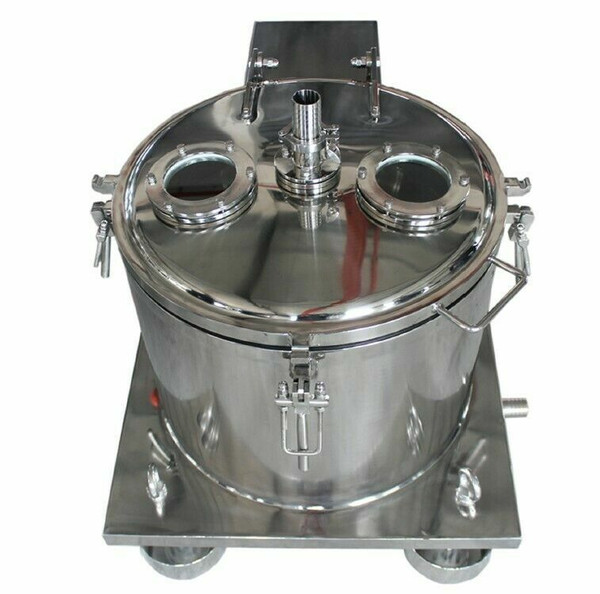

USA Lab 20L Jacketed Stainless Steel Centrifuge XTC-20
USA Lab$14,999.00Retail $18,999.00XTC-20 Manual -
-
USA Lab 50L Stainless Steel Jacketed Storage Vessel - SS304
USA Lab$2,399.00New Our 50L storage vessels come with a 12" opening for ease of use and access, as well a 6" bottom for easy access. Each storage vessel is fully jacketed with 1/2" FNPT inlet ports to allow... -
USA Lab 300L Stainless Steel Jacketed Storage Vessel - SS304
USA Lab$4,499.00Our 300L reactors come with a 12" opening for ease of use and access, as well a 6" bottom for easy access. Each reactor is fully jacketed with 1/2" FNPT inlet ports to allow circulation of warm or... -
USA Lab 150L Stainless Steel Jacketed Storage Vessel - SS304
USA Lab$3,499.00New Our 150L storage vessels come with a 12" opening for ease of use and access, as well a 6" bottom for easy access. Each storage vessel is fully jacketed with 1/2" FNPT inlet ports to...
Description

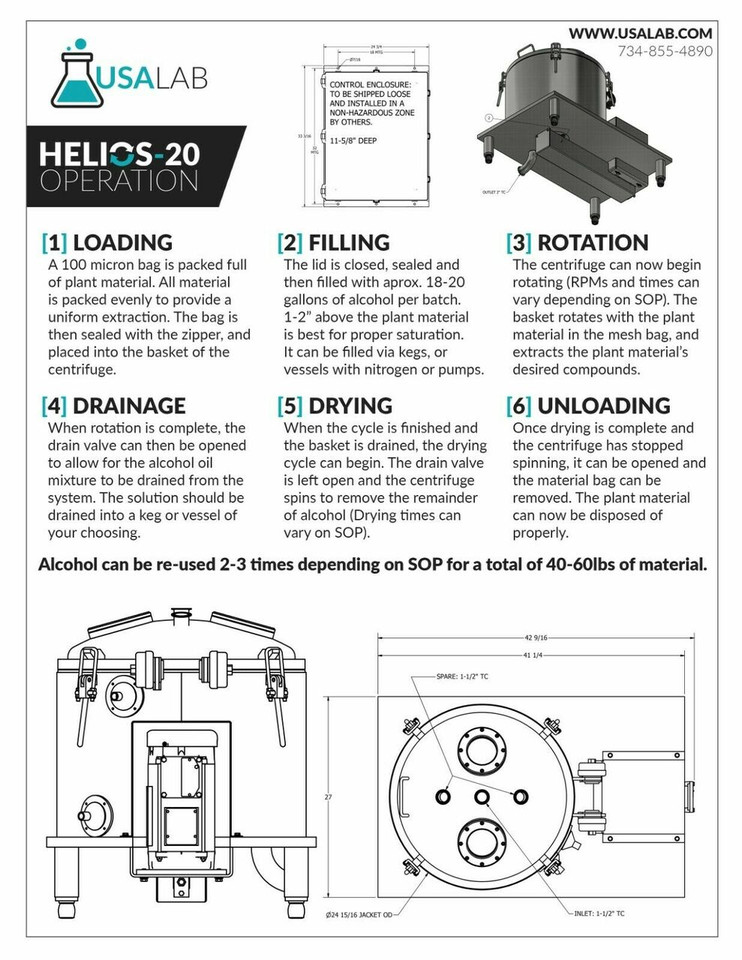

The USA Lab Helios-20 ethanol centrifuge allows users the ability to extract botanical compounds to achieve superb results and separation while maintaining a closed loop system. The USA Made Helios-20 takes 18-20 gallons of alcohol per batch and 15-20lbs of biomass per batch for approximately 350-450lbs of dry material per 8 hour shift with a single operator under safe C1D1&2 conditions.
With a fully enclosed 1/2" FNPT jacket, the end user can circulate fluid with temperatures of -40°F with ease. The centrifuge lid also has 3x 1.5" Triclamp ports and a 2" Triclamp drain for maximum customization and ease of use.
|
HELIOS-20 SPECIFICATIONS & FEATURES |
|
•18-20 Gallons of Alcohol Per Batch |
|
•15-20 lbs of Biomass Per Batch |
|
•15-20 Minute Cycle Per Batch |
|
•350-450lbs of Biomass Per 8-Hours |
|
•Made in the USA |
|
•1 Year Warranty |
|
•Closed Loop |
|
•304 SS |
|
•-40°F Rating |
|
•220V 30A Single Phase |
|
•7" Allen Bradley Touch Screen |
|
•Variable Speed |
|
•Easy Loading |
|
•Jacketed Insulation |
|
•10sqft Inswool Wrap |
|
•Jacketed for Fluid Transfer |
|
•2" TC Outlet |
|
•3x 1.5" TC Lid |
|
•0-1750 RPM Frequency |
|
•2HP Explosion-proof Motor, C1D1, C1D2 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
