Description
New
***In Stock !****
The USA Lab 100L Single Jacketed Glass Reactor is the best reactor on the market. Each reactor has an outer jacket allowing circulation of liquid ranging in temperature from -80°C to 250°C.
No expense has been spared with these reactors, yet we crush the market on pricing to provide great value at a low cost. Our reactors are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.
Bring your lab to the next level, and get started with a USA Lab single jacketed reactor today!
|
JR-100 SPECIFICATIONS |
|
•Glass Material: GG-17 Borosilicate Glass |
|
•Reaction Vessel Capacity: 100L |
|
•Material Flask Capacity: 5L |
|
•Fluid Jacket Capacity: 18L |
|
•Rotary Speed: 0-450 RPM |
|
•Glass Temperature Range: -80°C to 250°C / -112°F to 482 |
|
•Power Requirements: 110-120V 60Hz 15A Single Phase |
|
•Stirrer Wattage: 250W |
|
•Vacuum Level: Under 0.098 Mpa |
|
•Dimensions: 48"L x 34"W x 102"H |
|
•Weight: 275 lbs |
|
•Speed Regulation: Digital Step-Less |
|
•Condenser and Feed Valve Barbs: 10MM - 3/8" |
|

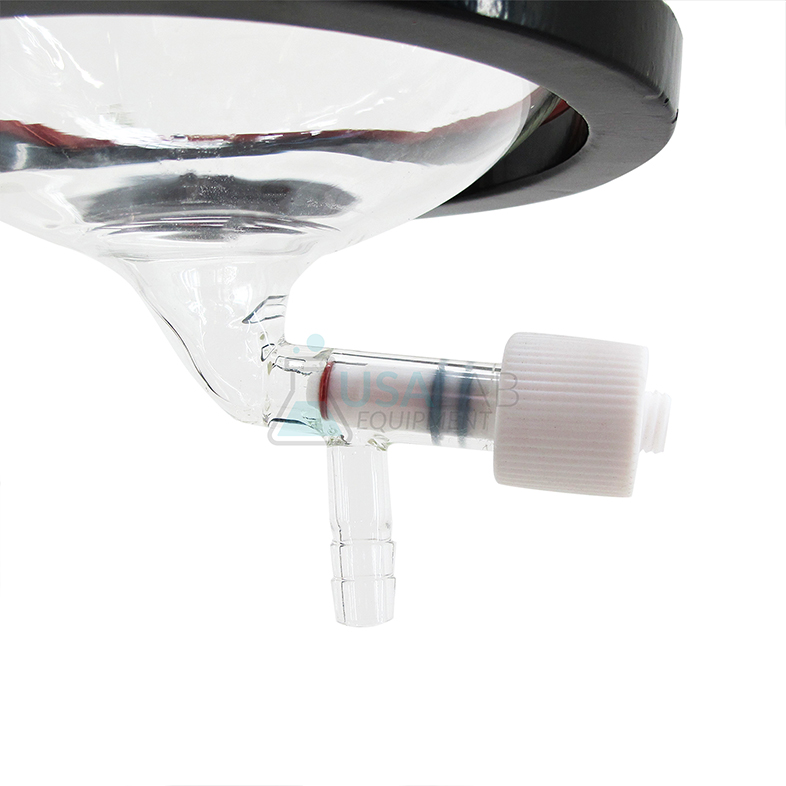

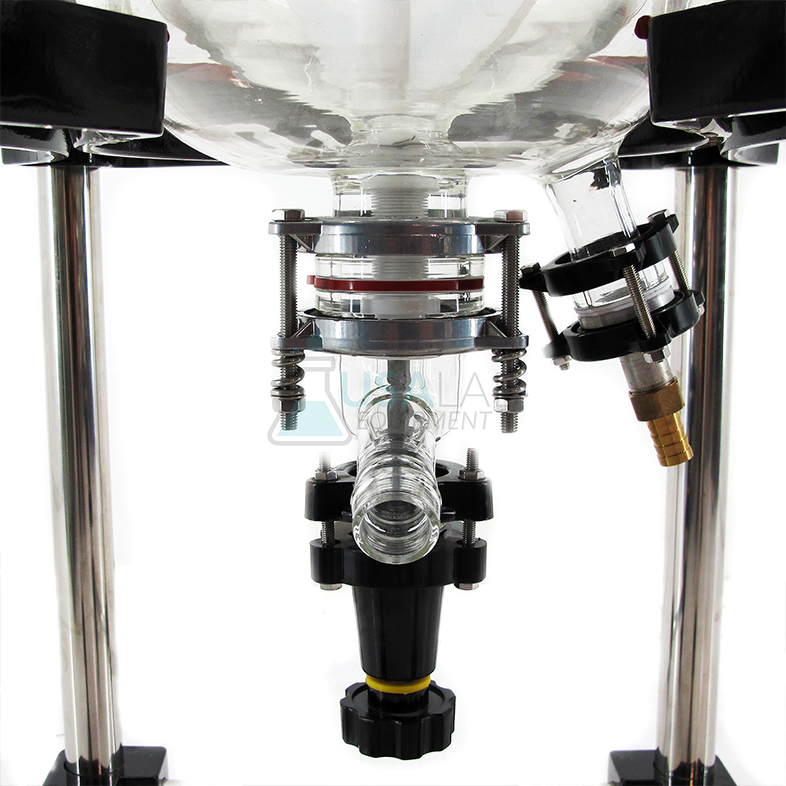

•Bottom Drain Port: 35MM - 1 3/8" |
|
•Receiving Flask Barb: 16MM - 5/8" |
|

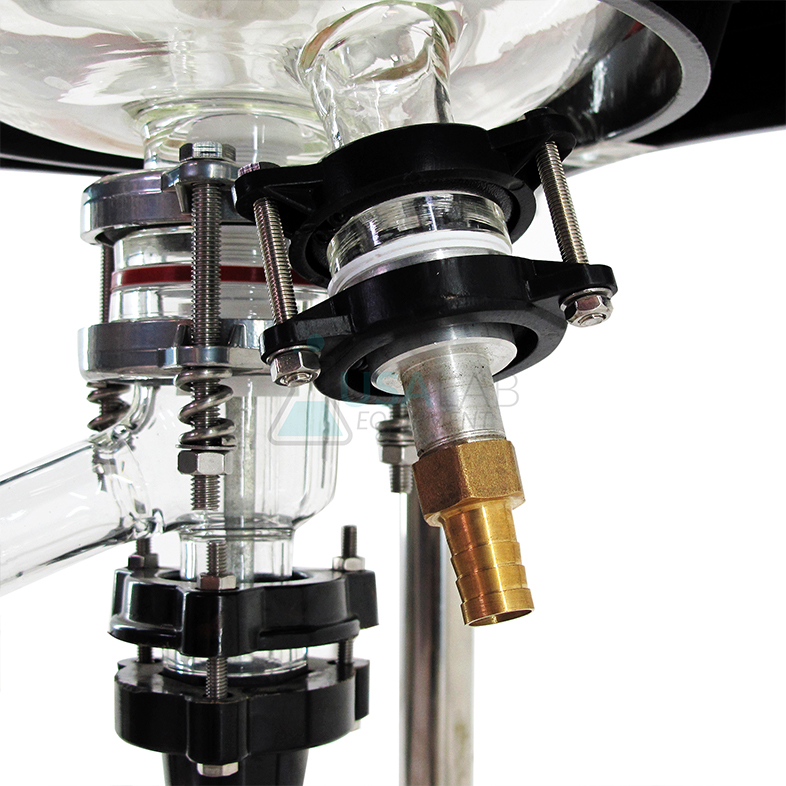

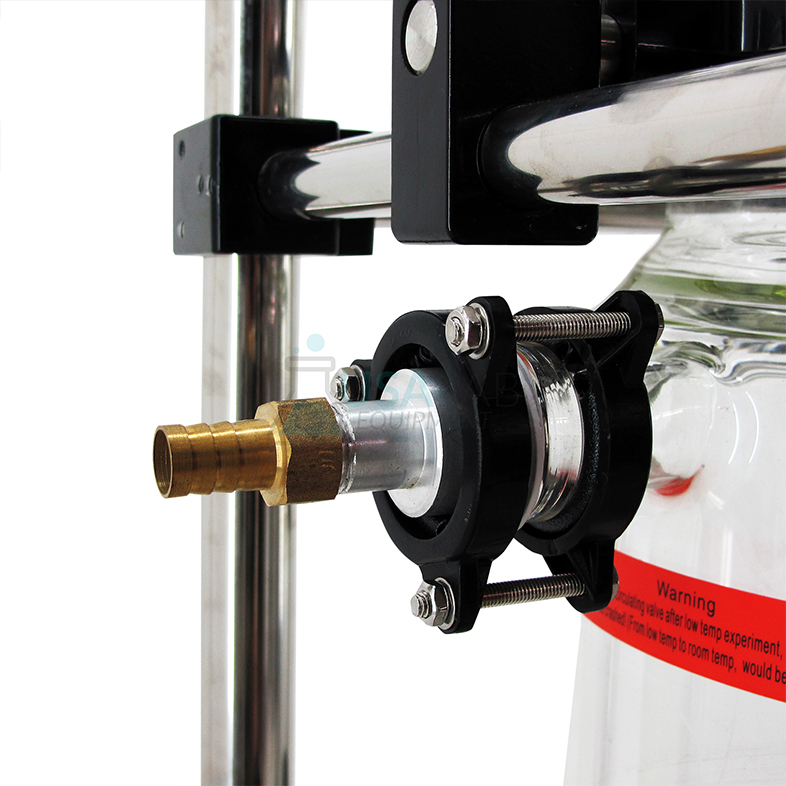

•Fluid Connection: 16MM - 5/8" barb or 3/4" NPT |
|

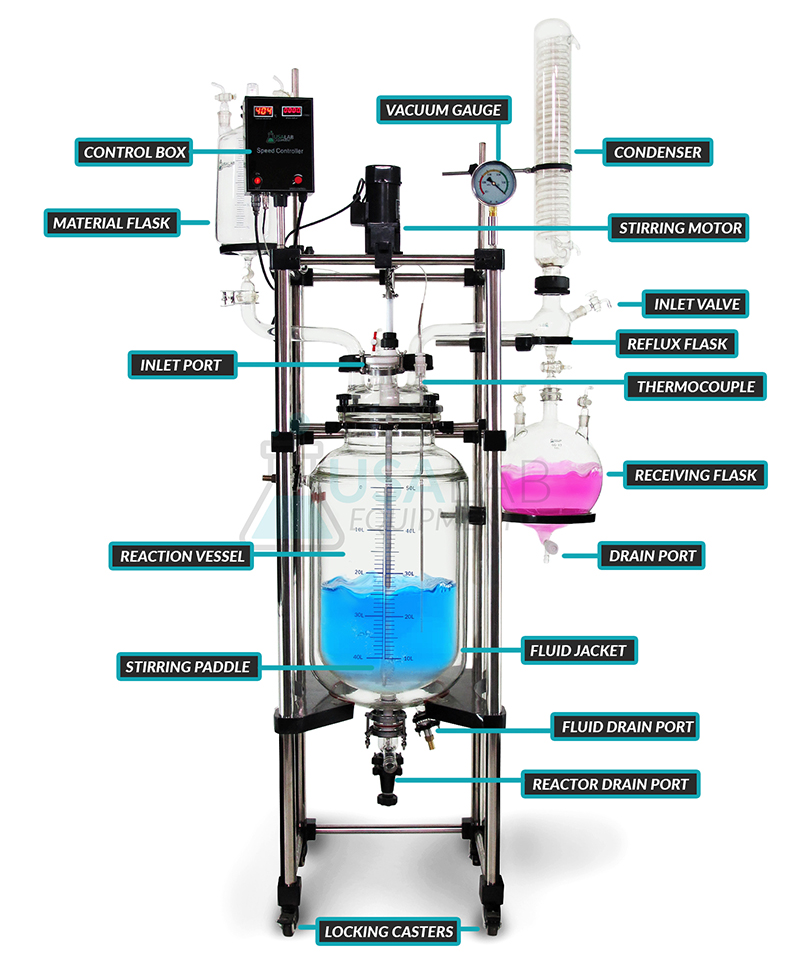

JR-100 PACKING LIST |
|
|
USA Lab 100L Jacketed Reactor JR-100 |
1 set |
|

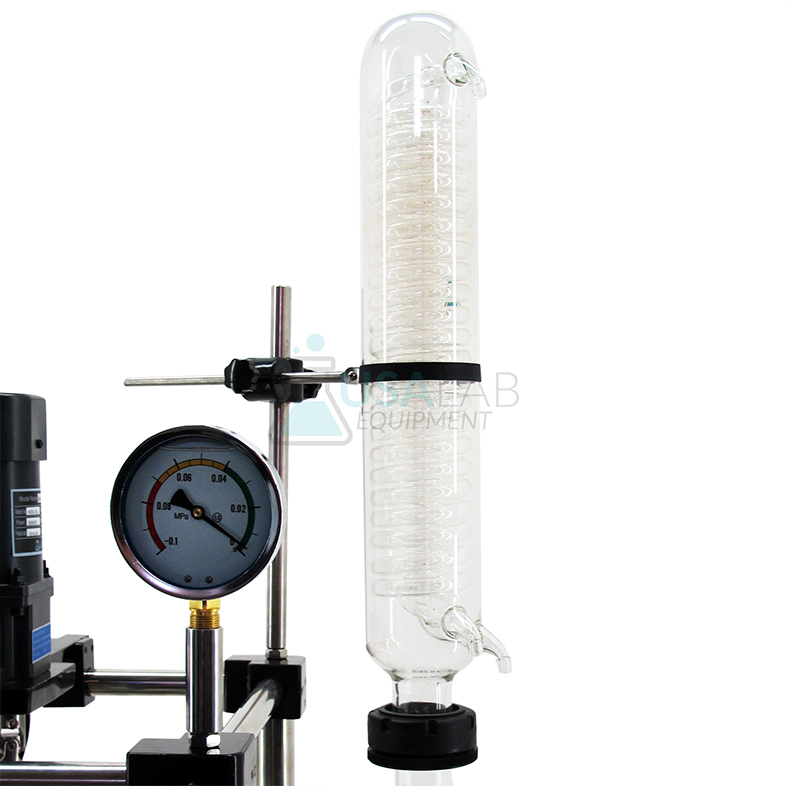

Main Condenser |
1 pc |
|

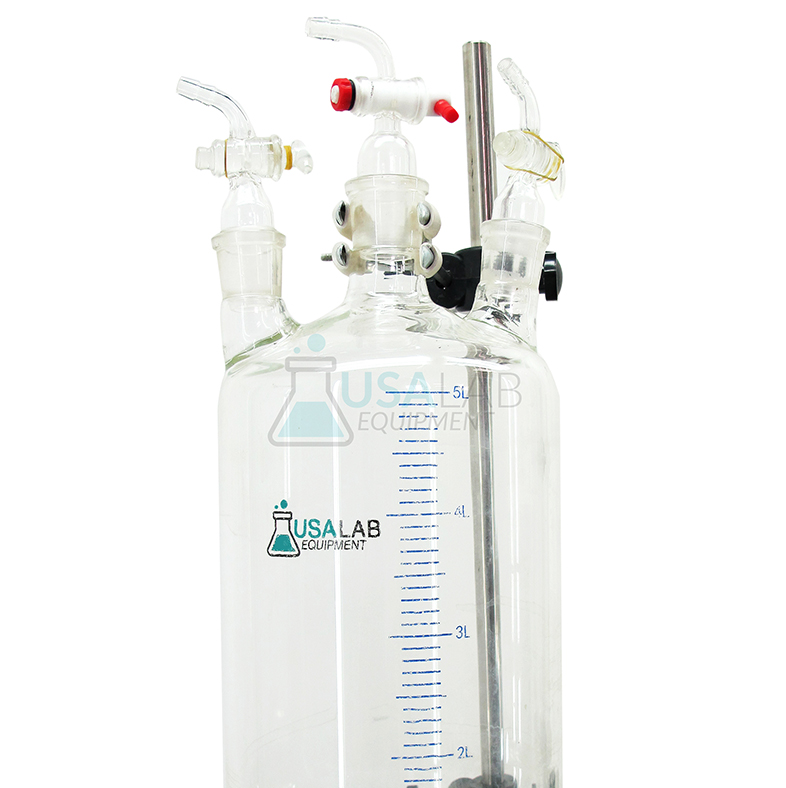

5L Material Flask |
1 pc |
|
10L Receiving Flask |
1 pc |
|

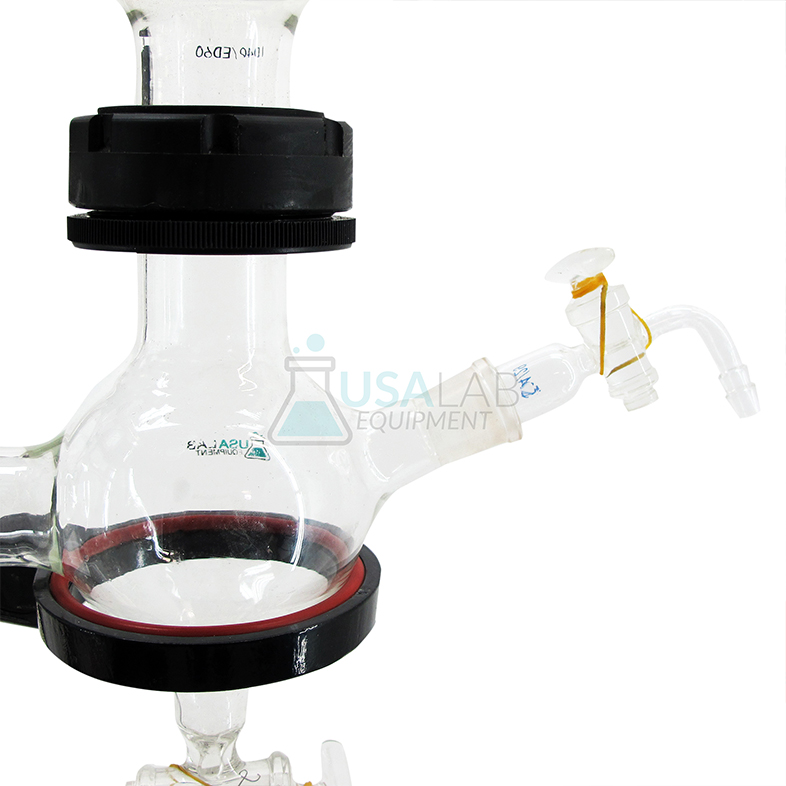

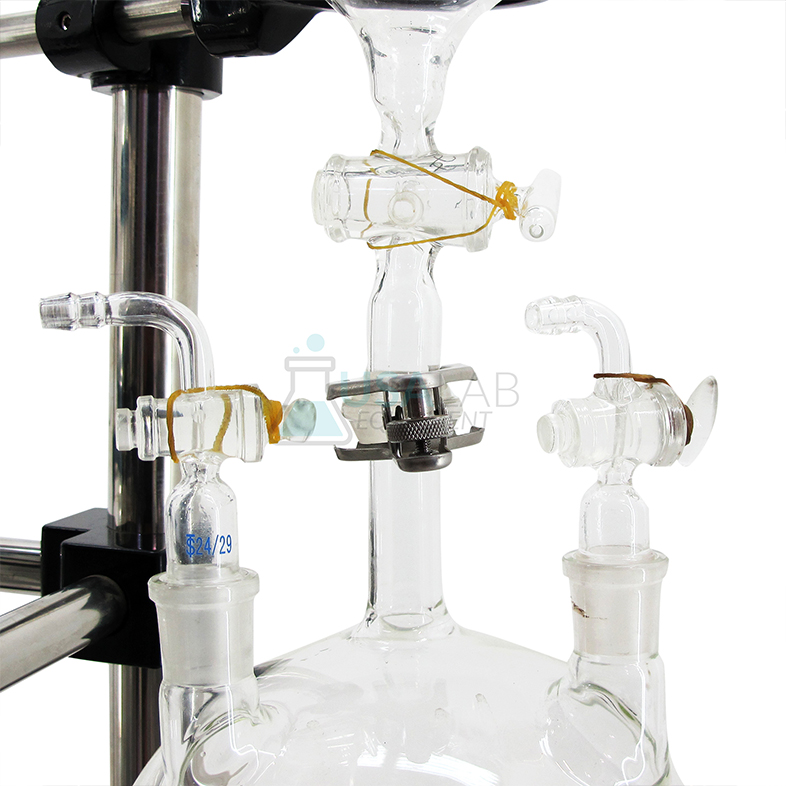

Reflux Flask with Valve |
1 pc |
|

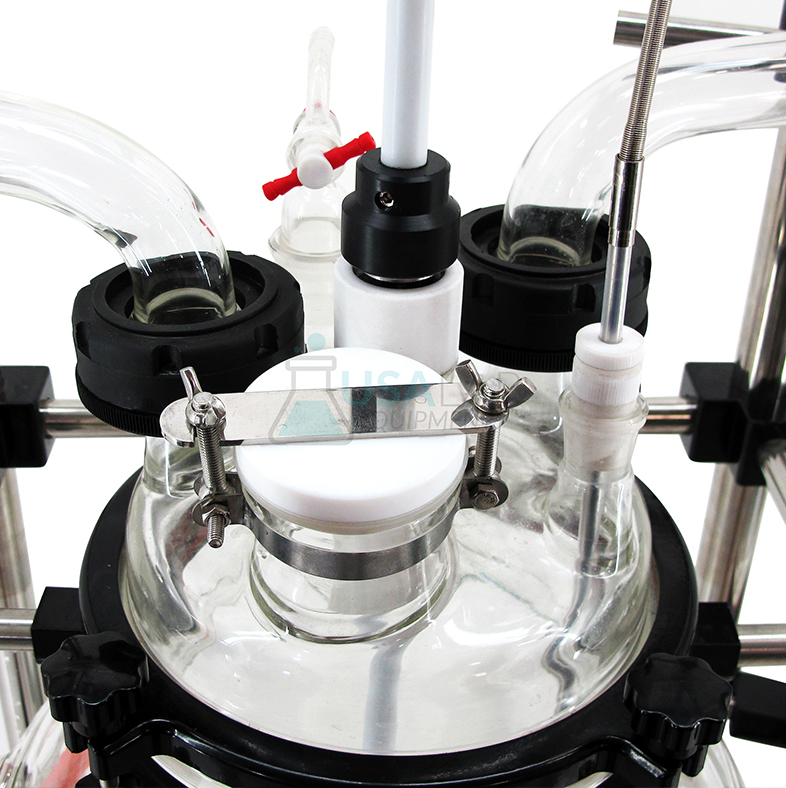

Feed Ports |
6 sets |
|
Stopper |
1 pc |
|
Clamp for Material Flask |
1 pc |
|
Strap for Condenser |
1 sets |
|
Sealing Screw / Flange |
3 sets |
|
Fluid Line Sealing Clamp / Flange |
2 sets |
|
Control Box |
1 pc |
|
Vacuum Gauge |
1 pc |
|
Support Rings |
2 pcs |
|
Stirring Motor w/ Paddle |
1 set |
|
Temperature Probe |
1 pc |
|
Liquid 5/8" Connections |
2 pcs |
|
Metal Clamp |
2 pc |
|
3oz. Vacuum Grease |
1 pc |
|
Vacuum Hose |
10 ft. |
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
USA Lab is not responsible for glassware failure due to improperly checked glassware before and after use. Over time glassware may develop imperfections through usage, stress, misuse and even temperature variations. It is your responsibility as the consumer to inspect glassware prior to and after use for any imperfections that may have occurred. Upon inspection, if any imperfections are noticed, do not use the glassware. Glassware with imperfections may fail and cause harm.
1 Year parts and labor warranty included, glass is not covered under warranty.
For Technical Support, Questions, or Other Issues Please Email or Call Us!
USA Lab Equipment
Livonia, MI 48150
