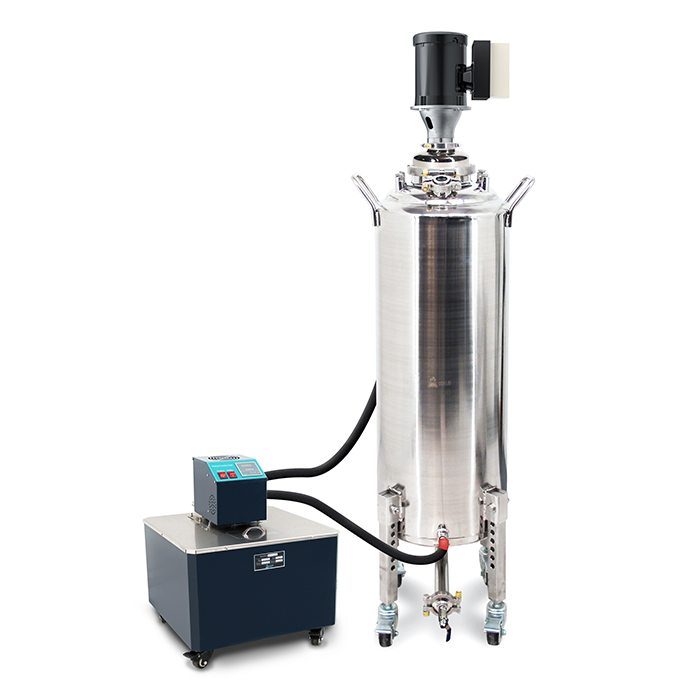

USA Lab 100L/200LB Mixing Solvent Tank w/ RH-30L and 1/2 HP USA Made Motor

TANK SPECIFICATIONS

•Material: 304 Stainless Steel

•Capacity: 100L

•Lid Size: 6" Tri-Clamp

•Tank PSI Rating: 150psi

•Motor Gasket PSI Rating: 3psi

•Lid Connections: (3x 1/2" FNPT) (1x 1/4" FNPT) (1x 6" Tri-Clamp x 3" Tri-Clamp)

•Drain Connection: 1.5" Tri-clamp ( to 1/2" Barb)

•Exterior Dimensions: 21" L x 22" W x 65" H

HEATER SPECIFICATIONS

•Reservoir Capacity: 30L

•Reservoir Dimensions: 20" x 20" x 24"

•Temperature Range: Room Temperature to 299°C

•Power Requirements: 220-240V 50-60Hz 30A Single Phase 6-30P Plug

•Heating Wattage: 5000W / 22.7A

•Temperature Accuracy: +/- 0.2°C

•Pump Flow: 18.3L/Min

•Total Pump Lift: 6m

•Connection Size: 1/2" MNPT

•Dimensions: 19" x 19" x 24"

•Weight: 68lbs

STIRRER SPECIFICATIONS

•Horse Power: 0.5

•Impeller Diameter: 4" (2 included)

•Power Requirements: 110-120V 50-60Hz 15A

•Motor: 1/2" HP, TEFC, IP55

•RPM: 350-1750

•Mount Type: 3" Tri-Clamp

•Bearing: SS, Carbon Steel Coupler

•Seal: FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous

•Shaft: .625" Diameter x 32" Exposed - 316SS, No Polish

•Impeller: (2) 4" Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw

PACKING LIST

100L Solvent tank (200LB) w/ 12" Bend 1.5" TC

1pc

6"x3" Hemi Reducer

1pc

1.5" HP TC

2pcs

3" HP TC

1pc

6" HP TC

1pc

1.5" Buna-N Gasket

2pcs

3" Buna-N Gasket

1pc

6" Buna-N Gasket

1pc

1.5" Sight Glasses w/ Gaskets and Clamps (Attached)

2pcs

RH-30L 30L 200°C Heater

1pc

RH-30L Hosing - 6ft

2pcs

1/2 HP USA Made Variable Speed Triclamp Motor

1pc

32" Rod

1pc

4" Impellers

2pcs

1.5" TC x 1/2" FNPT

1pc

1/2" MNPT Hex

1pc

1/2" Superlok Valve

1pc

1/2" MNPT x 1/2" Barb

1pc

1/2" MNPT Plug

3pcs

1/4" MNPT Plug

1pc
