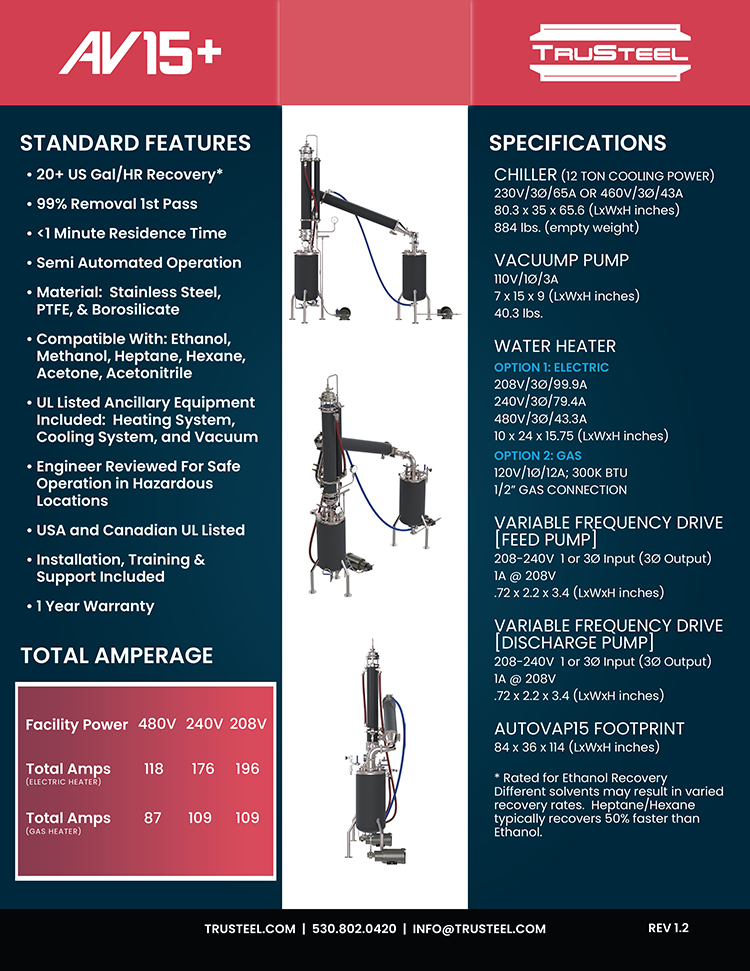

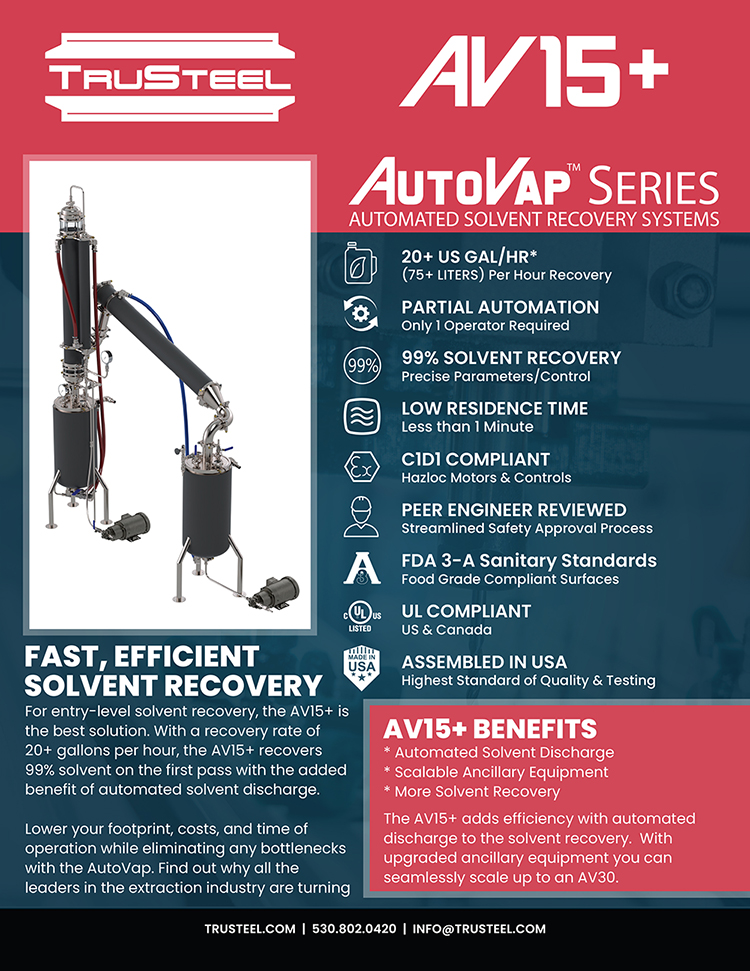

TruSteel AV-15 AutoVap Falling Film Evaporator - 20 Gal/Hr

STANDARD FEATURES

SPECIFICATIONS

• 20+ US Gal/HR Recovery*
• 99% Removal 1st Pass
• <1 Minute Residence Time
• Semi Automated Operation
• Material: Stainless Steel,
PTFE, & Borosilicate
• Compatible With: Ethanol,
Methanol, Heptane, Hexane,
Acetone, Acetonitrile
• UL Listed Ancillary Equipment
Included: Heating System,
Cooling System, and Vacuum
• Engineer Reviewed For Safe
Operation in Hazardous
Locations
• USA and Canadian UL Listed
• Installation, Training &
Support Included
• 1 Year Warranty

CHILLER (12 TON COOLING POWER)
230V/3Ø/65A OR 460V/3Ø/43A
80.3 x 35 x 65.6 (LxWxH inches)
884 lbs. (empty weight)

VACUUMP PUMP
110V/1Ø/3A
7 x 15 x 9 (LxWxH inches)
40.3 lbs.

WATER HEATER
OPTION 1: ELECTRIC
208V/3Ø/99.9A
240V/3Ø/79.4A
480V/3Ø/43.3A
10 x 24 x 15.75 (LxWxH inches)
OPTION 2: GAS
120V/1Ø/12A; 300K BTU
1/2” GAS CONNECTION

VARIABLE FREQUENCY DRIVE [FEED PUMP]
208-240V 1 or 3Ø Input (3Ø Output)
1A @ 208V
.72 x 2.2 x 3.4 (LxWxH inches)

VARIABLE FREQUENCY DRIVE [DISCHARGE PUMP]
208-240V 1 or 3Ø Input (3Ø Output)
1A @ 208V
.72 x 2.2 x 3.4 (LxWxH inches)

AUTOVAP15 FOOTPRINT
84 x 36 x 114 (LxWxH inches)

* Rated for Ethanol Recovery
Different solvents may result in varied
recovery rates. Heptane/Hexane
typically recovers 50% faster than
Ethanol.
