Name: 12" Pressurized Buchner Funnel with 50L Keg
Brand: USA Lab
SKU: 12BUCHNERKEG
Price: 3072.36 CAD
Availability: OutOfStock

Description

New

***In Stock ***

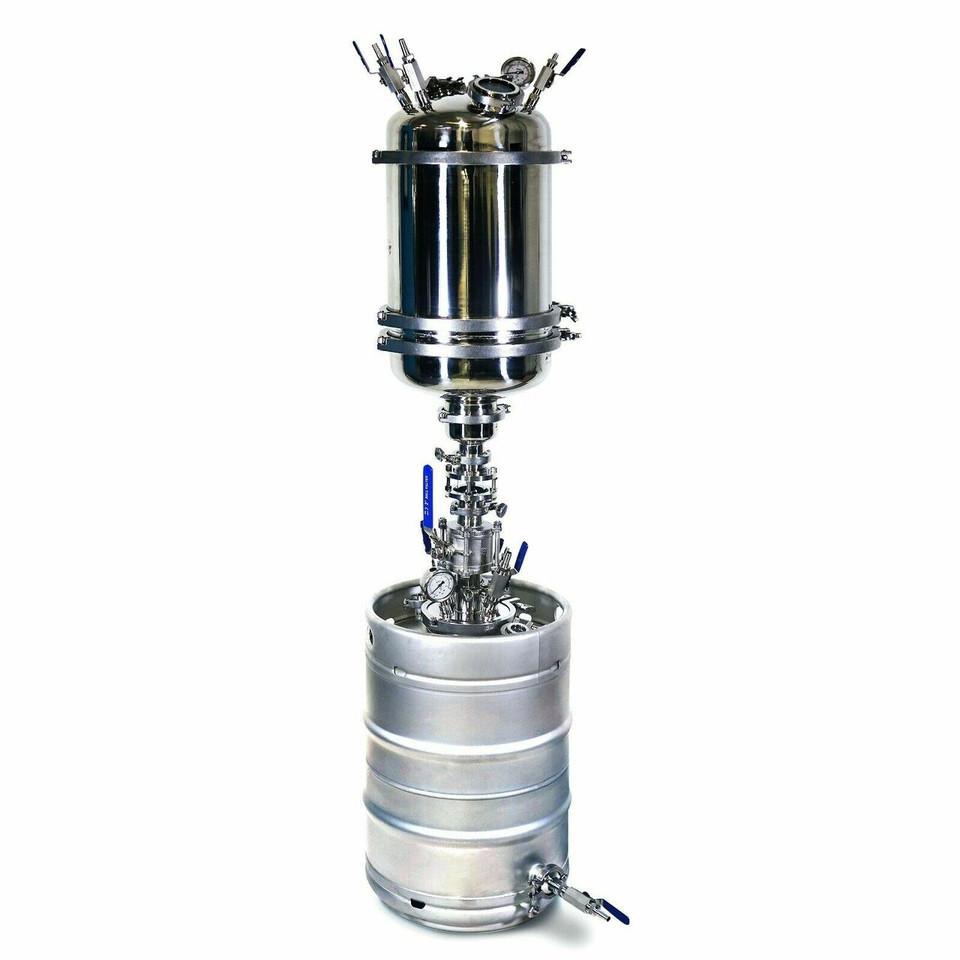

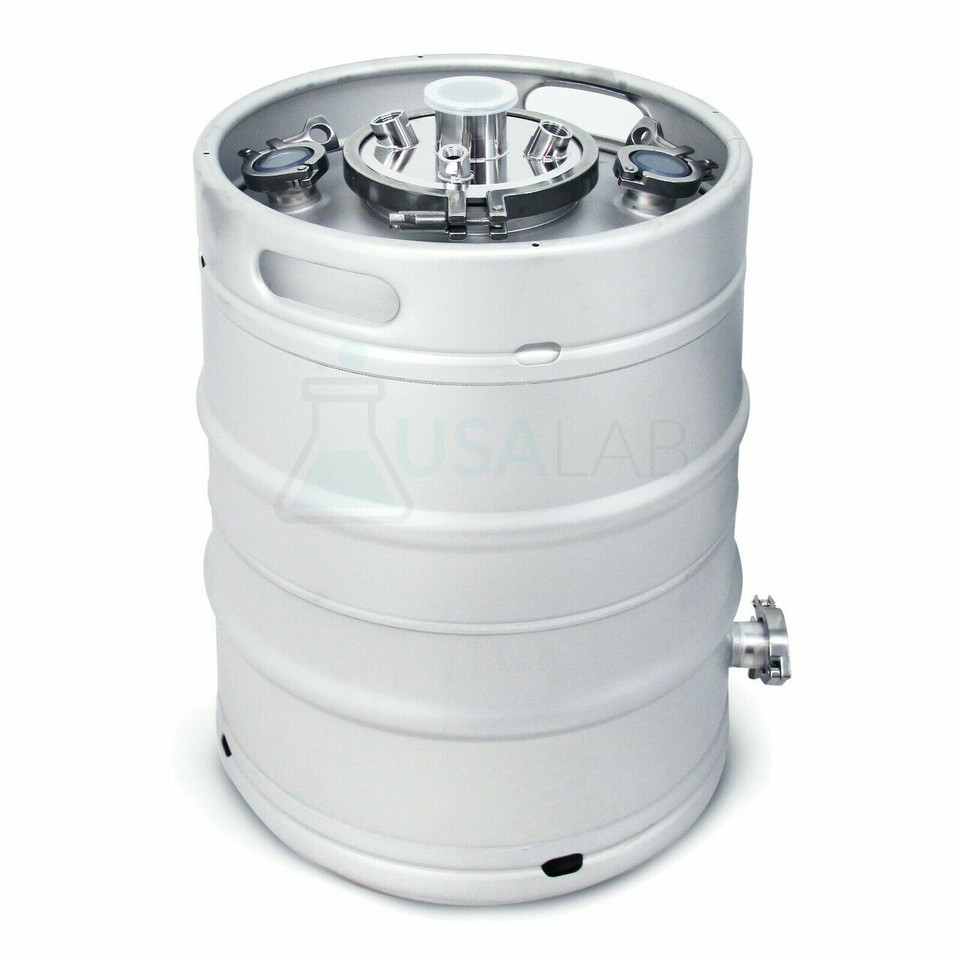

The USA Lab 12" Buchner Funnel Kit With Lid allows for infeed, assisted pressure and pressure releasing all in one unit. We've designed this buchner funnel to allow the user to customize the unit and lid to whatever need they may have. This system feeds directly into a 50L keg for maximum storage and ease of use. The keg is equipped with 2 dip tubes allowing for extraction through vacuum or pressure. Step up your filtering game and get started today with our 12" buchner funnel kit.

12BUCHNERKEG SPECIFICATIONS

•Material: 304 Stainless Steel

•Side Connections: 1.5" TC (1.5" to KF25 Included)

•Top Connection: 2x(3" TC for Glass) 2x(1/2"MNPT to 1/2" Barb) 1x(3/8"MNPT to 1/4"MJIC for Nitrogen) 1x (1/4" FNPT for Gauge)

•Keg Connection: 2x(1.5" TC for Glass) 2x(1/2"fNPT to 1/2" Barb) 1x(1/2"FNPT to 1/4"MJIC for Nitrogen or Vacuum) 1x (1/4" FNPT for Gauge) 1x(2"TC for Top Port)

•Keg Bottom Connection: 1.5" TC to 1/2" Barb

•Buchner Capacity: 22L

•Keg Capacity: 50L

*12BUCHNER KEG PACKING LIST*
50L Keg with 1.5" TC Sight Glass	1pc
50L Keg Lid with diptubes	1pc
2" TC Ball Valve	1pc
2" Short Sight Glass	1pc
2" TC to 4" TC Hemi Reducer	1pc
4" TC to 12" TC Hemi Reducer	1pc
12" Filter Plate Kit	1pc
12"x12" TC Spool	1pc
12" Hemi Lid with 2x 3" TC	1pc
1.5" Boro Sight Glass	2pcs
3" Boro Sight Glass	2pcs
1.5" Buna-N Gasket	1pc
2" Buna-N Gasket	3pcs
4" Buna-N Gasket	1pc
12" Buna-N Gasket	3pcs
1.5" Single-Pin Triclamp	3pcs
2" Single-Pin Triclamp	3pcs
4" Single-Pin Triclamp	1pc
12" Single-Pin Triclamp	3pcs
1/4" Superlok Valve	1pc
3/8" Superlok Valve	1pc
1/2" Superlok Valve	5pcs
1/2" MNPT to 1/2" Barb	5pcs
1/2" MNPT to 1/4" MNPT	1pc
1/4" MNPT to 1/4" MJIC	1pc
3/8" MNPT to 1/4" MJIC	1pc
1/2" MNPT Hex	3pcs
1/4" Gauge	2pcs
1.5" TC to 1/2" FNPT	1pc
