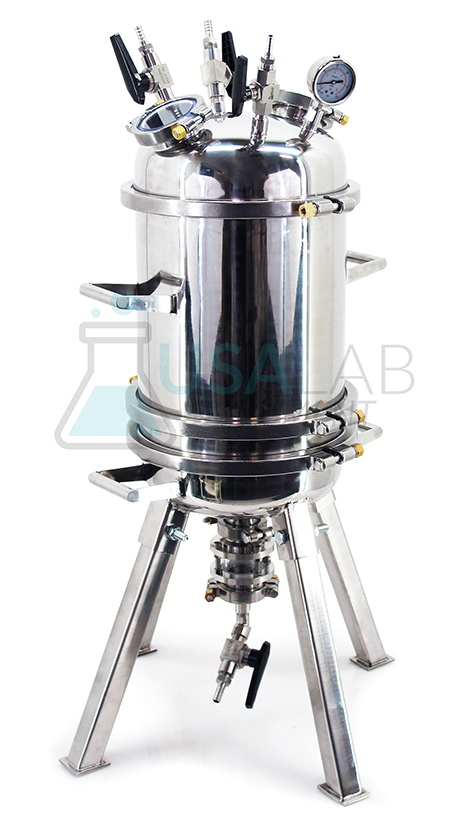

Name: 12" Buchner Funnel With Lid For Top Pressure - SS304 - 90PSI
Brand: USA Lab
SKU: 12PBF
Price: 7673.1 AED
Availability: OutOfStock

Description

New

***In Stock ***

The USA Lab 12" Buchner Funnel Kit With Lid allows for infeed, assisted pressure and pressure releasing all in one unit. We've designed this buchner funnel to allow the user to customize the unit and lid to whatever need they may have. Step up your filtering game and get started today with our 12" buchner funnel kit.

12PBF SPECIFICATIONS

•Material: 304 Stainless Steel

•Capacity: 22L

•Filter Micron / Mesh: 100 Micron / 150 Mesh

•Filter Plate Size: 12"

•PSI Rating: 90psi

•Lid Connections: (2x 1/2" MNPT) (1x 3/8" MNPT) (1x 1/4" FNPT)

•Bottom Connections: (1x 2" Triclamp / Clover)

•Exterior Dimensions: 24.5" L x 24.5" W x 38" H

•Weight: 72 lbs

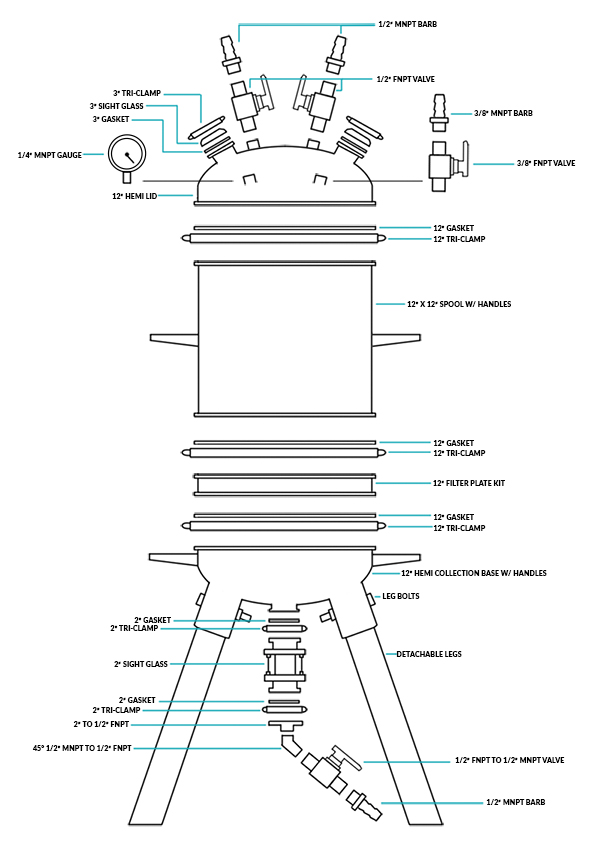

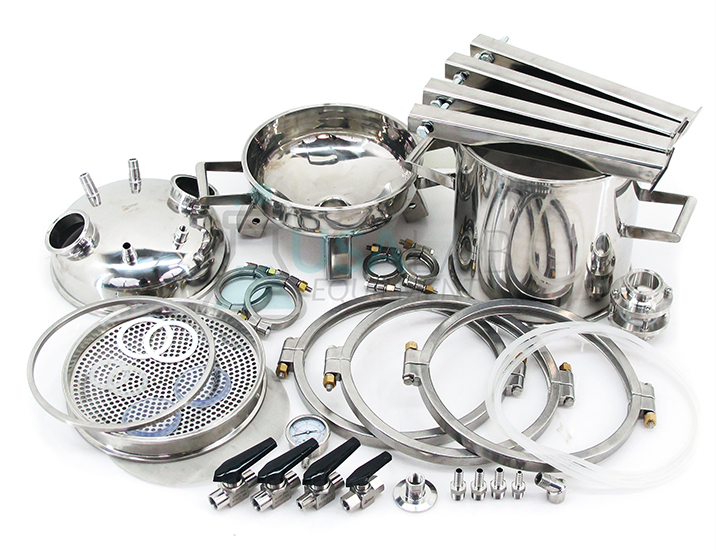

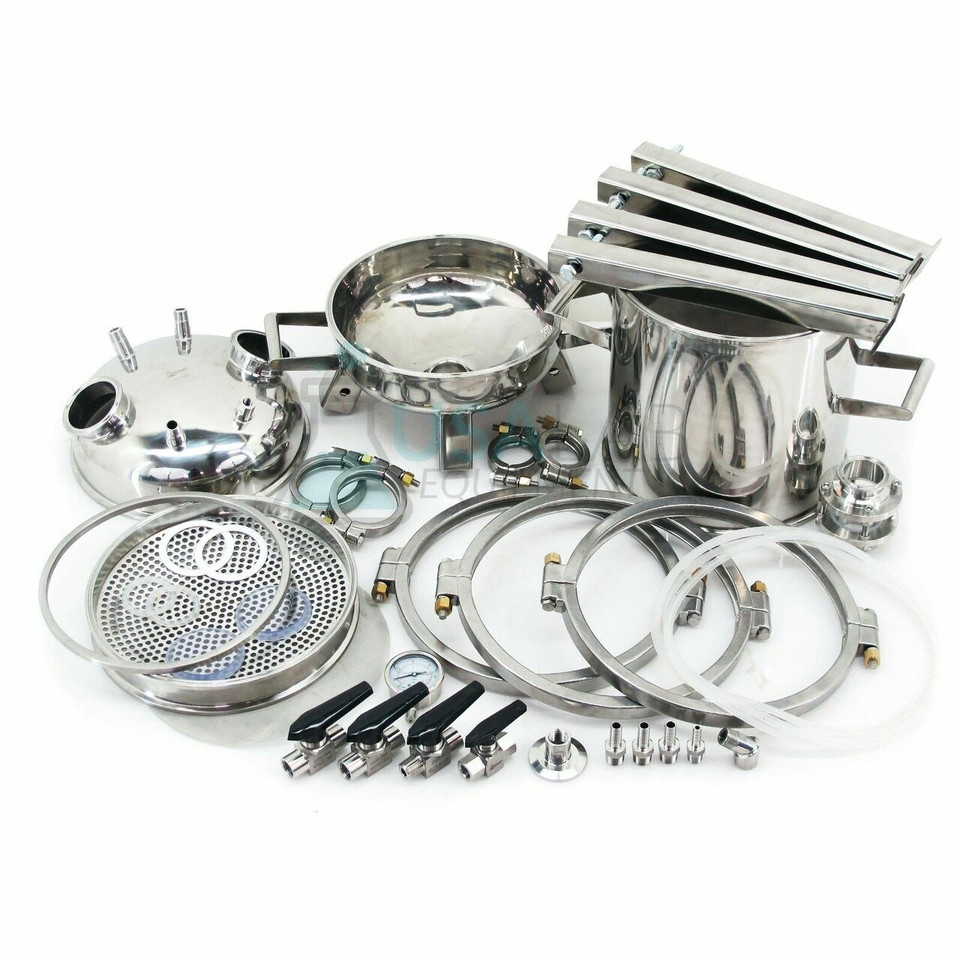

*12PBF PACKING LIST*

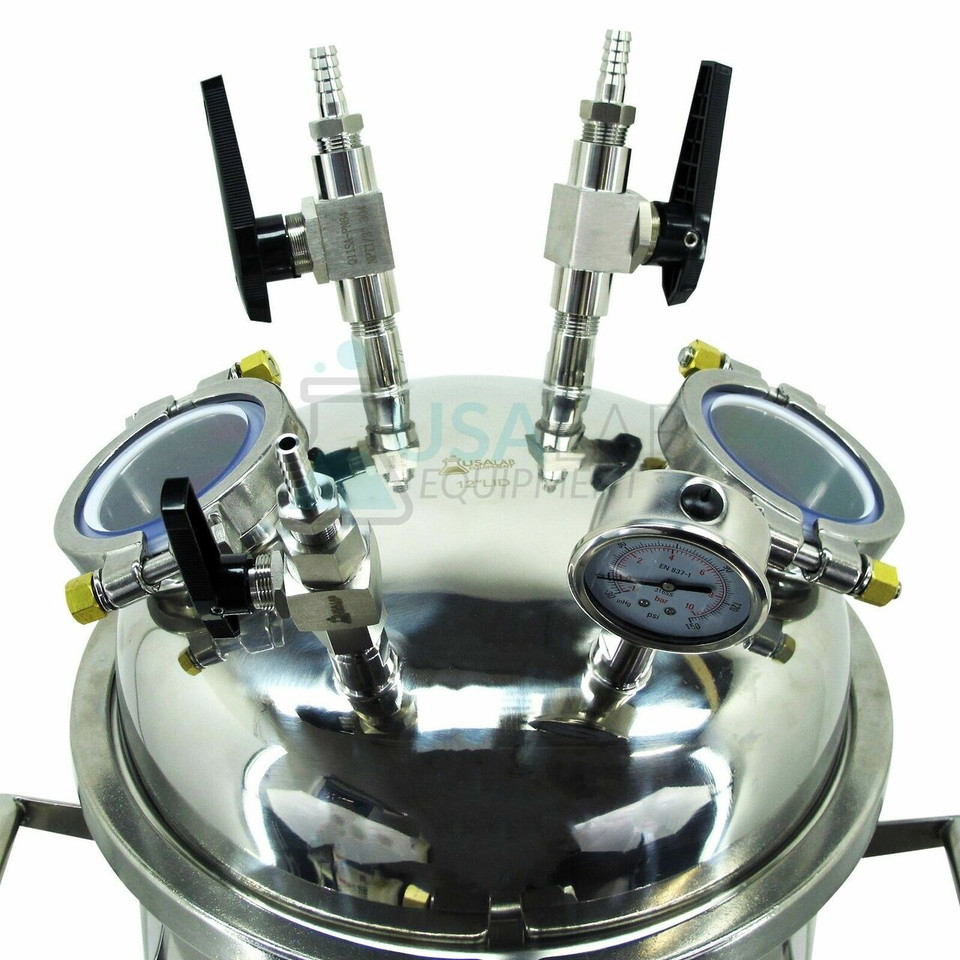

Hemi Lid - (2x 1/2 MNPT) (1x 3/8 MNPT) (1x 1/4 FNPT) (2x 3" TC)	1pc
Triclamp Spool With Handles - 12" x 12"	1pc
Filter Plate - 12" x 2"	1pc
Hemi Reducer With Handles - 12" to 2" TC	1pc
Filter Ring - 12"	1pc
Metal Mesh - 12" - 150 Mesh - 100 Micron	1pc

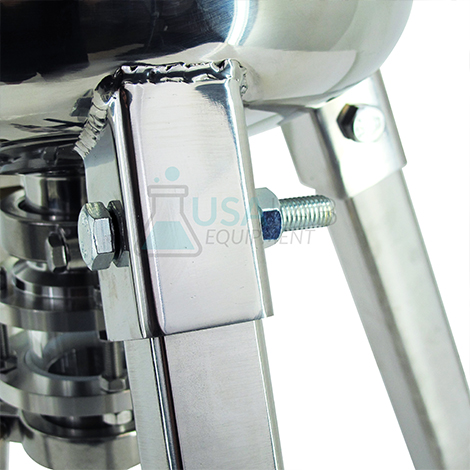

Removable Legs With Bolt & Nut	4pcs
High Pressure Triclamp - 2"	2pcs
High Pressure Triclamp - 3"	2pcs
High Pressure Triclamp - 12"	3pcs
NPT 90° Elbow - 1/2"	1pc
High Pressure Ball Valve - 1/2" FNPT to 1/2" FNPT	3pcs
High Pressure Ball Valve - 3/8" FNPT to 3/8" FNPT	1pc
2" Tri-Clamp to 1/2" FNPT	1pc
1/2" MNPT to 1/2" Barb	3pcs
3/8" MNPT to 3/8" Barb	1pc
1/4" Pressure Gauge - 150psi max	1pc
2" Viton Gasket	2pcs
3" Viton Gasket	2pcs
12" Viton Gasket	3pcs
3" Flat Sight Glasses	2pcs
2" Short Sight Glass	1pc
Vacuum Hose	10ft.
